TrailManor brings you their largest, most luxurious travel trailer yet, the 3124 Series. These models can still easily be towed by smaller tow vehicles like TrailManor's other brands, and set-up only takes a couple minutes!



The 3121 Series trailers start with a 2" x 5" steel frame, a 3" laminated floor, and a metal underbelly for strength and durability. You will appreciate the rubber torsion axles with independent suspension for smooth towing, and there is a convenient swing hitch outside and stabilizer jacks. Head inside to find marble-look countertops, full kitchen and bath amenities, plus plenty of storage space for your camp take-a-longs. There are many available options you can add to further customize your trailer, like the low profile roof A/C, the 100-wall solar panel, or the AM/FM Bluetooth stereo.



If you're looking for a travel trailer for the family or your group of friends, choose a 3124 Series by TrailManor!

  • 3124 Series 3124KB

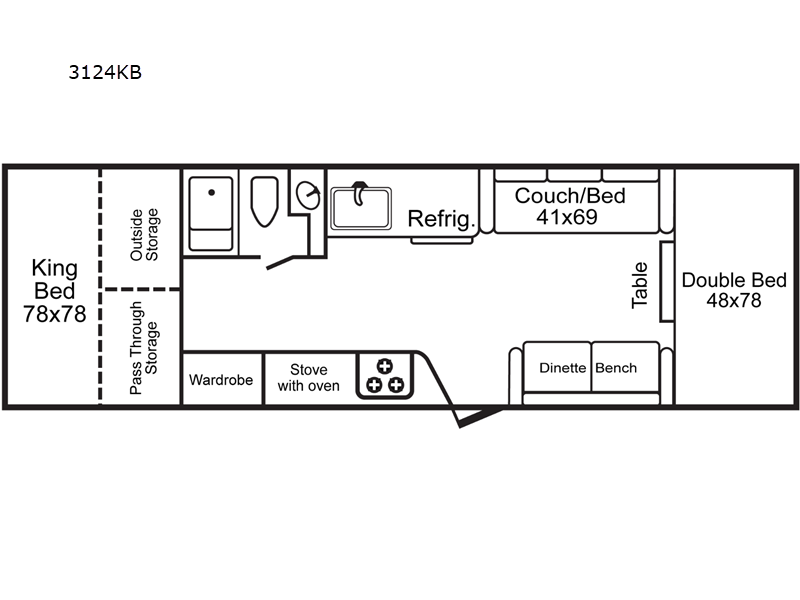

    3124 Series 3124KB Floorplan Image

    TrailManor 3124 Series travel trailer 3124KB highlights: Double-Size Bed ... more about 3124 Series 3124KB

    Specifications

    Sleeps 6
    Length 24 ft
    Ext Width 7 ft 11 in
    Ext Height 6 ft 8 in
    Int Height 6 ft 4 in
    Hitch Weight 434 lbs
    Dry Weight 3140 lbs
    Cargo Capacity 1600 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 35 gals
    Tire Size 15"
    Furnace BTU 20000 btu
    Available Beds King, Double
    Refrigerator Type Three Way
    Refrigerator Size 3 cu ft
    Cooktop Burners 3
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type DSI Gas/Electric
    Axle Count 1
    Number of LP Tanks 2
    Shower Type Tub/Shower Combo

3124 Series Features:

Standard Features (2024)



Standard Mechanical Features

  • Rubber torsion axles with independent suspension
  • Bearing lubrication system
  • 2” x 5” steel frame
  • 3” laminated floor
  • Metal underbelly
  • 12-v electrical w/55-amp power converter and battery charger
  • Electric brakes
  • 12-volt demand water system
  • Ground fault interrupter
  • 40 gallon fresh water tank (20 gallon on 2720 and 2922 Slide Out models)
  • City water hookup
  • 35-gallon gray water tank

Standard Exterior Features

  • Swing hitch - reducing storage length by 2 feet
  • Krystal Kote exterior
  • 110 volt outside receptacle
  • Twin 20 lb. gas bottles with automatic changeover
  • LED tail and running lights
  • LED porch lighting
  • Stabilizer jacks (4)
  • Radial tires
  • 6-gallon DSI gas/electric water heater
  • Alloy wheels (excludes spare)
  • Spare tire package
  • Outside shower
  • Park cable hookup

Standard Interior Features

  • Fire extinguisher
  • 12-v power in living area
  • Bath with shower, tub, sink and regular flush toilet
  • 3 burner stove w/oven
  • 3-way 3 cu. ft. refrigerator
  • Roof vents
  • TV/cable outlet
  • LED interior lights
  • Marble look countertops
  • Fantastic Vent ceiling fan
  • Suburban 20,000 BTU furnace
  • Bedroom privacy curtain
  • Monitor panel
  • Smoke detector, CO & LP gas detector
  • Preinstalled wiring for radio/ stereo
  • Power front slide out (Slide out models only)

Optional Equipment

  • Low profile roof air conditioner
  • Awning
  • Electric tongue jack
  • Hanging kitchen cabinets
  • Plumb w/quick connect for outside grill
  • Rear bike receiver
  • AM/FM Bluetooth Stereo
  • 100 watt solar panel w/digital control
  • Hanging LCD TV mount
  • Front window w/curtains & stone guard
  • Digital HD TV antenna with booster
  • Cassette toilet in place of regular flush toilet

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
